Portable Busbar Processing Machine
main features

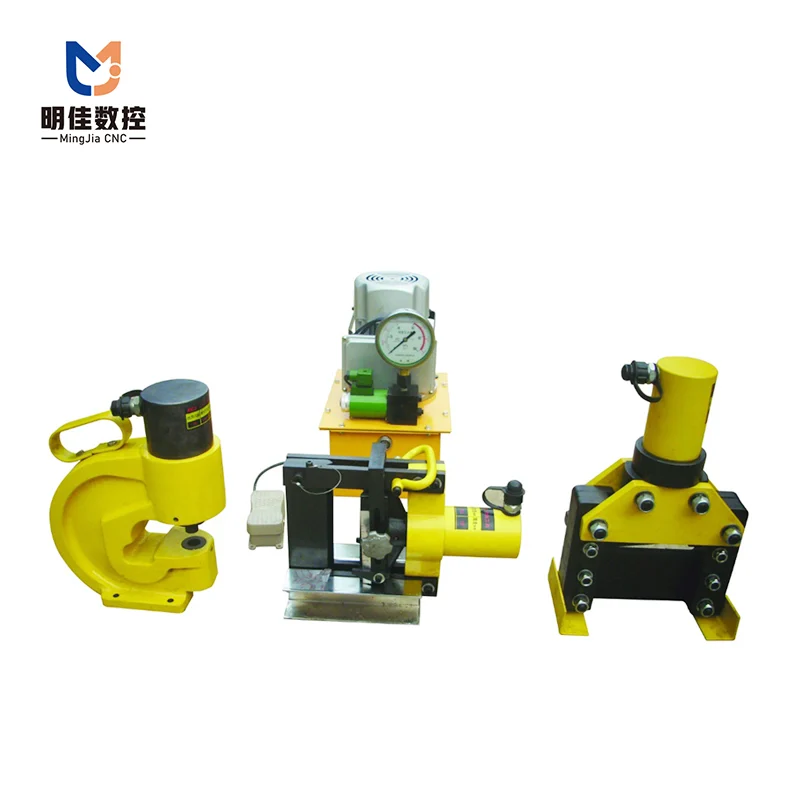

The Portable & Versatile Processing Center
Designed for unmatched flexibility and on-site convenience, this compact machine integrates three essential functions into one portable unit. Its small size, lightweight design, and universal adaptability make it the ideal solution for workshops with variable layouts or field maintenance tasks.
1、 (Compact & Mobile):
Featuring a small footprint and high mobility, it is easy to carry and reposition. Equipped with universal casters, it moves flexibly and conveniently to any job site, enabling efficient on-site power field repair and fabrication.
2、 (Three-in-One Versatility):

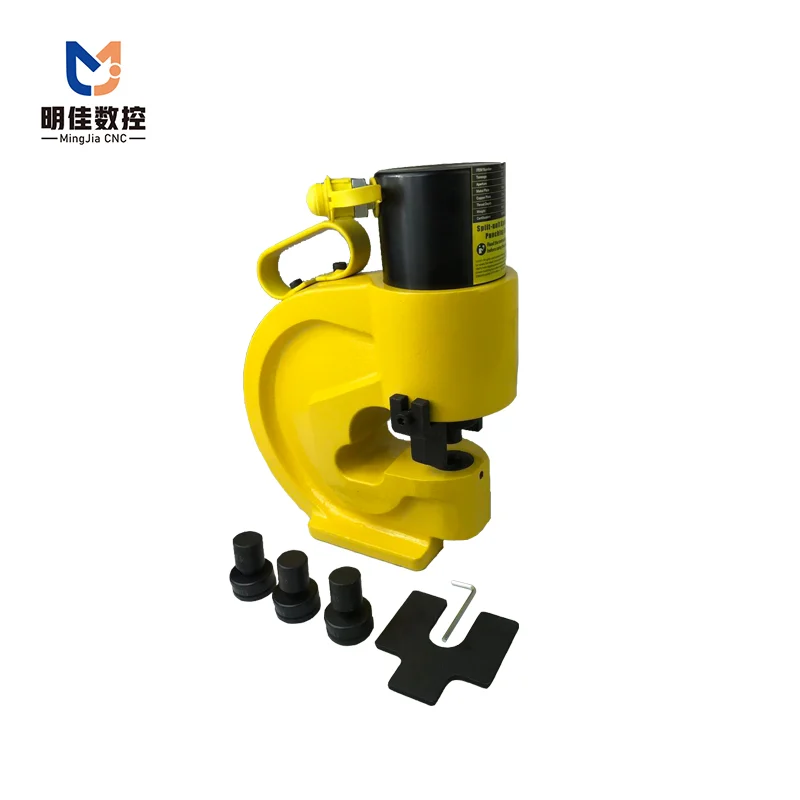

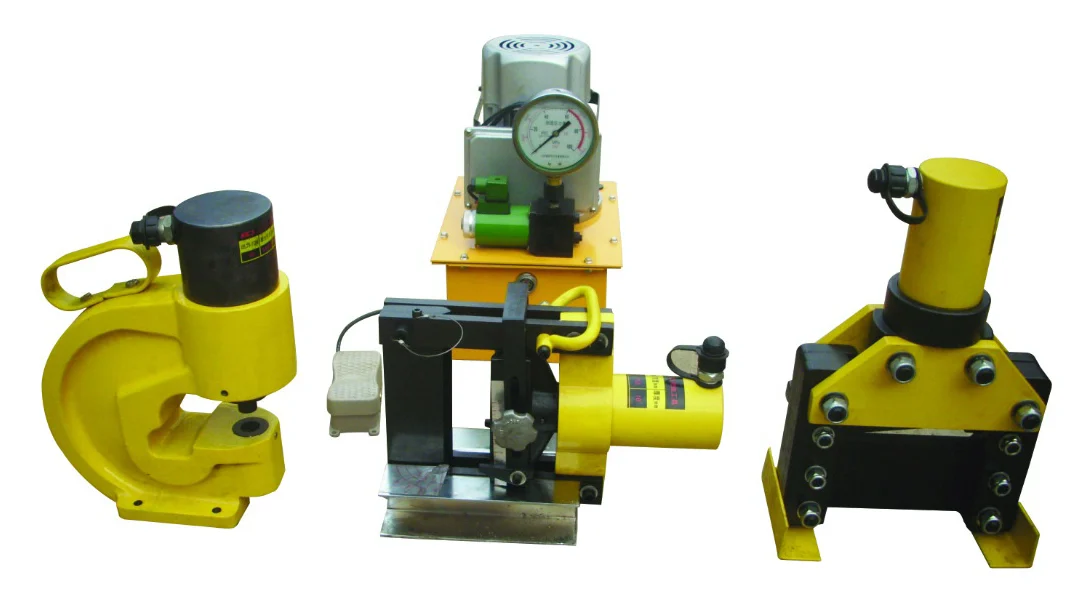

The machine combines punching, flaring/reducing, and folding into a single unit. These three processing stations can be switched between each other with ease, thanks to a universal quick-change joint system, maximizing utility without sacrificing floor space.
3、(Simple & Intuitive Operation):
Engineered for user-friendliness, the machine is simple to operate and offers flexible, convenient use. The straightforward design minimizes the learning curve, allowing operators to become productive quickly.
technical parameter

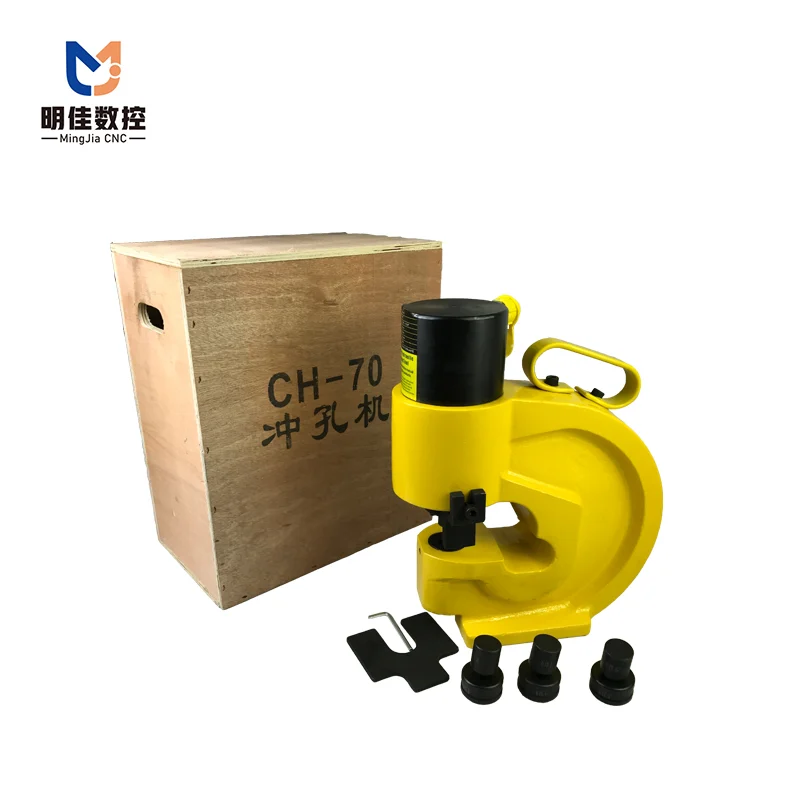

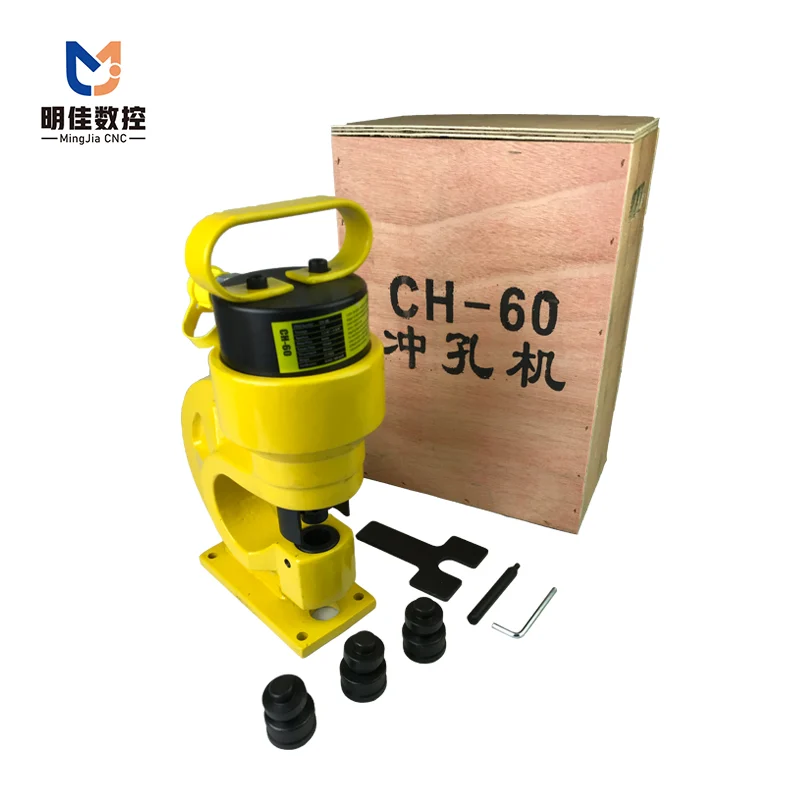

| Punching | Punching range | mm | 7 Ф Ф 21 |
| Cylinder pressure | T | 35 | |
| Steel aluminum row width | mm | 30-120. | |
| Punch thickness | mm | 10 | |

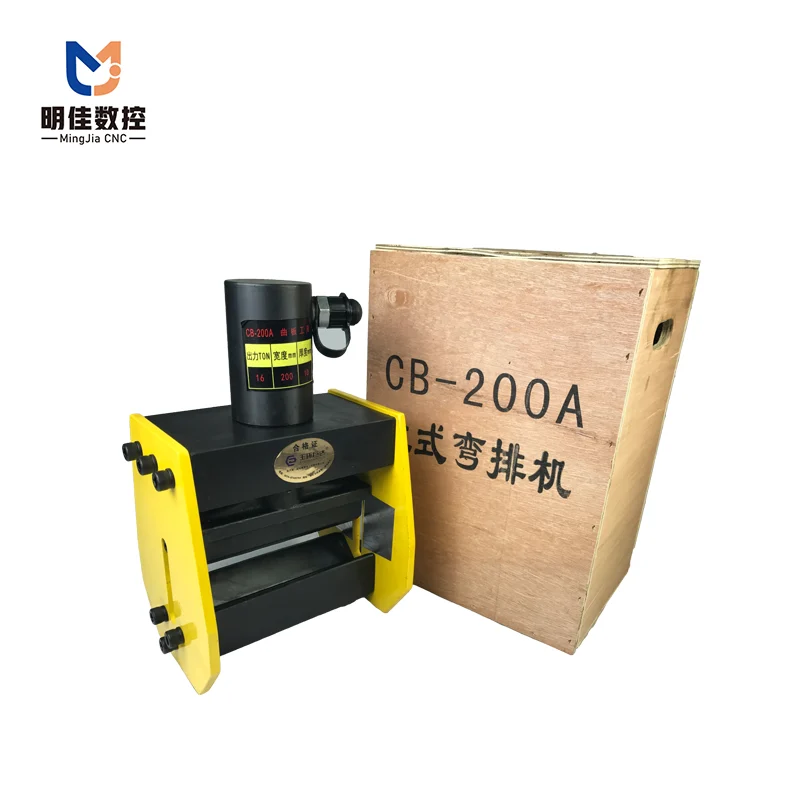

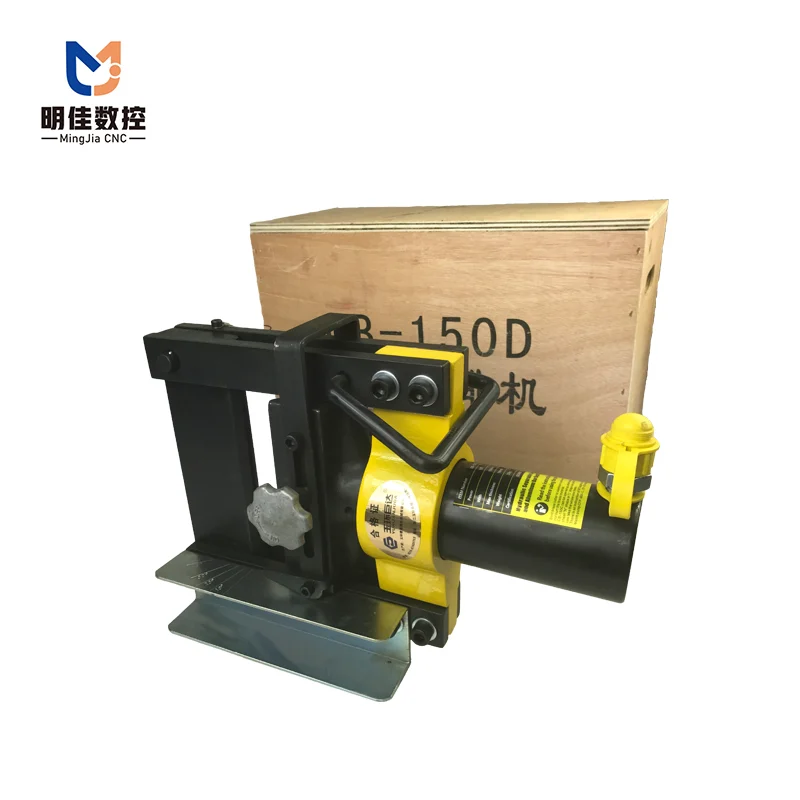

| Bend | Machined width | mm | 30-120. |
| Machining thickness | mm | 10 | |
| Bend the cylinder pressure | T | 20 | |
| Cylinder stroke | mm | 160 | |

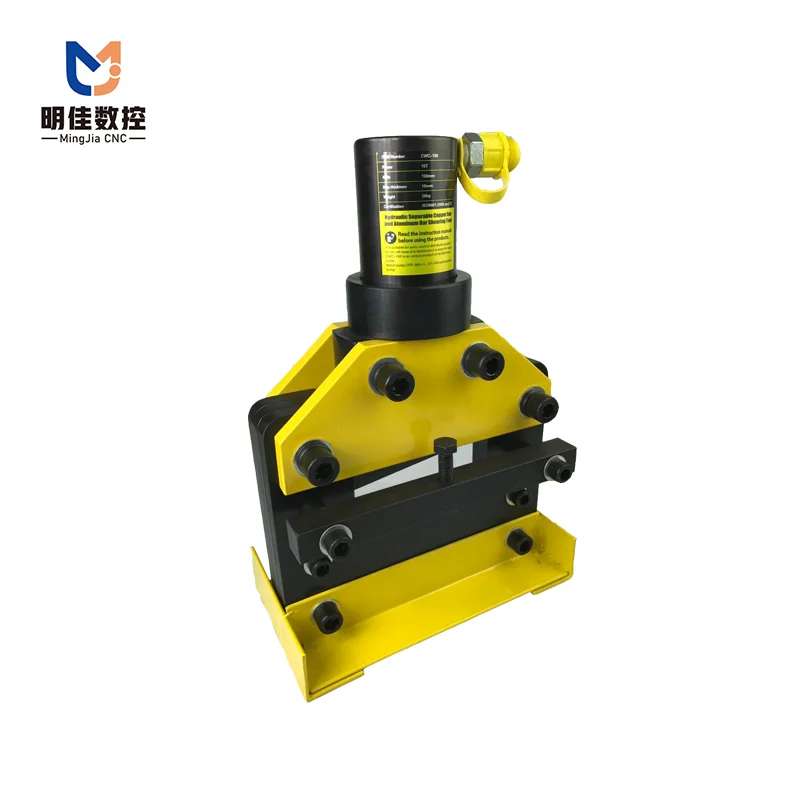

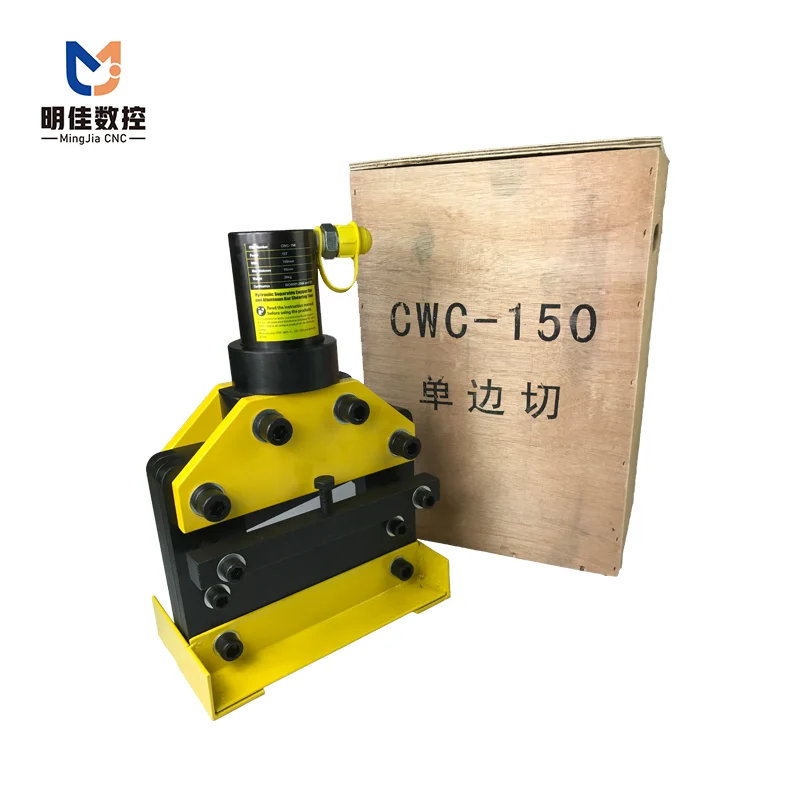

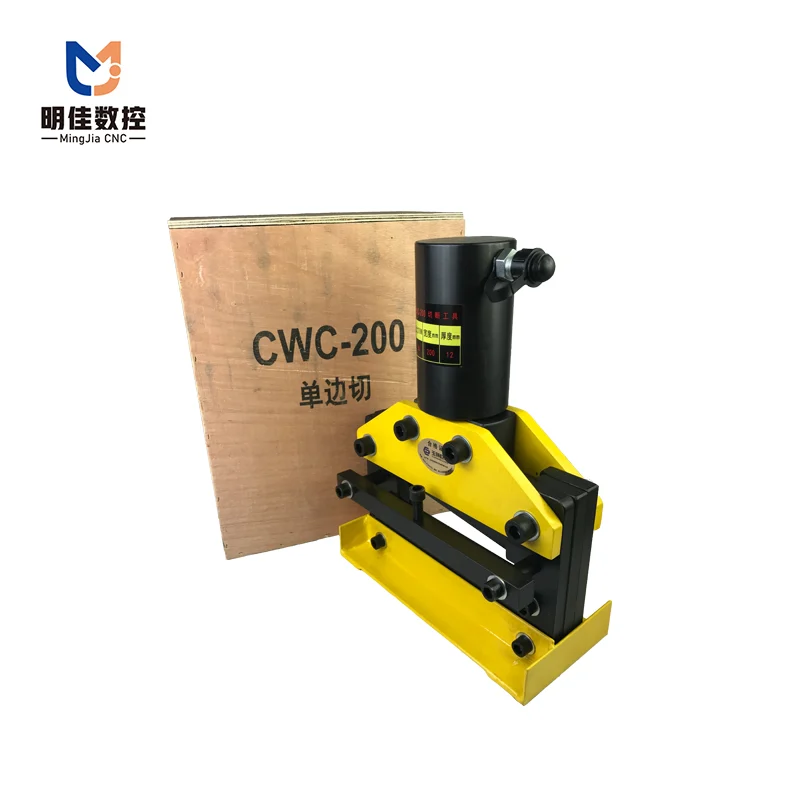

| Shearing | Cutting pressure | T | 20 |
| Width of cut row | mm | 30-120. | |
| Thickness of cut row | mm | 10 | |
| Rated voltage | 220V | ||

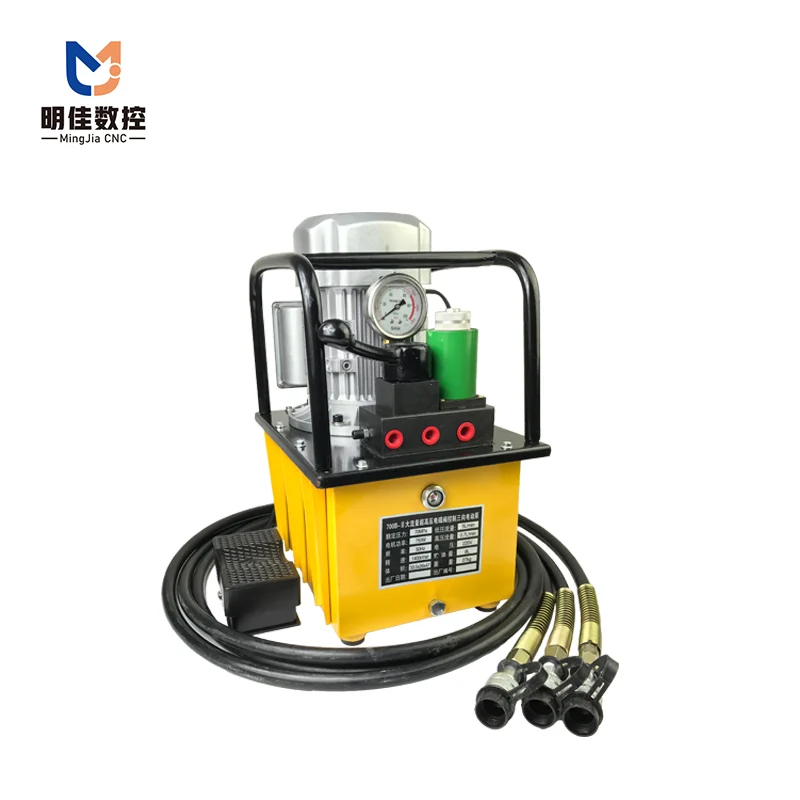

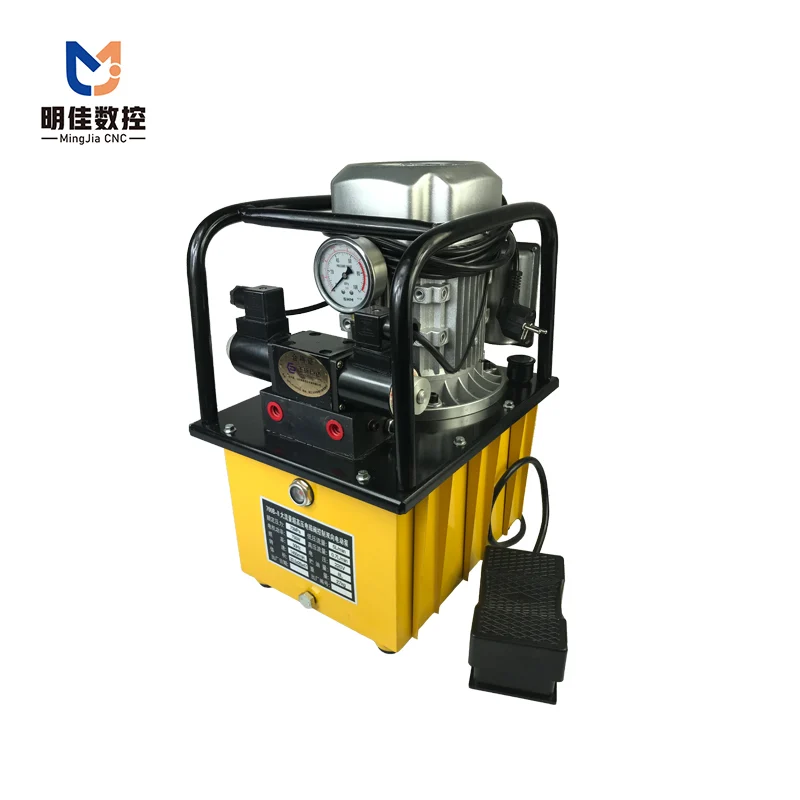

| Rated pressure | 70mpa | ||
| Table size | 700*700*1000 (mm) | ||
FAQ
The equipment is primarily designed for manufacturing copper and aluminum busbars, particularly suitable for standard rectangular busbars. The processing width, thickness, and length can be configured or customized according to the client's specific requirements, ensuring long-term stable operation without overload.
The standard configuration typically includes punching, shearing, and bending stations, enabling continuous multi-step processing. This multi-station design effectively reduces the turnaround time of the busbar between different machines, thereby enhancing overall processing efficiency.
The equipment features a high-rigidity integral structure and a stable hydraulic system, combined with precise positioning technology to ensure consistent hole positions, lengths, and bending angles, making it ideal for batch continuous production.
The system supports customized configurations including tonnage capacity, busbar specifications, power voltage, control modes, mold configurations, and automation levels, ensuring seamless alignment with clients' actual production requirements.
The operational logic is clear, and the control system is user-friendly. Ordinary employees can operate independently after brief training, reducing reliance on highly skilled workers.
The equipment is engineered for industrial continuous operation. With proper operation and maintenance, it maintains stable performance under high-intensity conditions.
Routine maintenance primarily involves basic inspections and periodic upkeep, which are low-complexity. We provide detailed maintenance guidance to help extend the service life of your equipment.
We provide remote technical support, video tutorials, hands-on training, and spare parts assistance, covering basic operations, mold assembly/disassembly, routine maintenance, and troubleshooting (including alarm handling and hydraulic leak resolution) to ensure long-term stable operation of your equipment.
